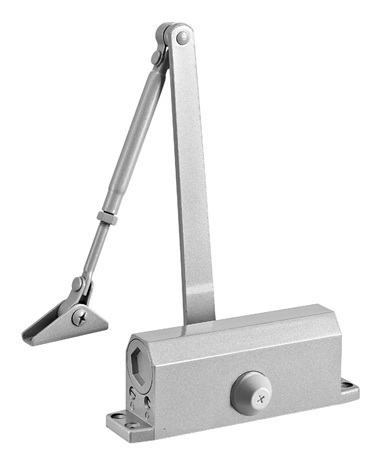

Door Closer - 1000 Series
Door Closer
ER-MA1403CE
1352
BSET SELL
Door Closer 閉門器
Economic Type 經濟款 Medium kind 中型款
Model ER-MA1403CE weight of body case 0.409kgs material of piston 20 cr material of gear shaft 20 cr bearing rolling stainsteel bear accuracy high back cover lathe process spring 60SI2Mn QTY of spring 2 adjustable screws lathe process oil high quality cold resistance oil inspection high inspection insurance 5 years CE& EN 1154
Functional Characteristics
Economic type door closer of residential and commercial.
Two speed control valve, adjusting closing speed and latching speed.
ADC 12 eniveronmental protection of aluminum alloy casting body.
Power Size EN 2
Positioning Function Optional.
Advantage points than others:
1. Over 500,000 cycling times.
2. Pass 4-5 years stable inside and outside use without complain
3. No oil leak
4. Every day test record by different weights, different forces, different temperatures.
5. Normal cycling work in +/-40℃
6. Soled to very cold country, Russia, very hot country Africa. Good feedbacks on our stable quality, as good as other famous big brands.
7. Good color box packaging or blister packaging.
8. 2 models get CE and EN 1154 certificates.
Kind Item No. EN Material Finish Size(mm) MOQ Function Small kind 1102 2 Aluminum
( square case)silver 132*CC19mm,
≤750-850mm door width,
capacity:15-45kgs1000 no holding 1102D 2 1000 holding Medium kind 1303 3 162*CC19mm,
≤830-950mm door width,
capacity:40-65kgs1000 no holding 1303D 3 1000 holding 1403 CE 3 165*CC19mm,
≤830-950mm door width,
capacity:40-65kgs1000 no holding 1403D CE 3 1000 holding Large kind 1604 4 168*CC19mm,
≤930-1100mm door width,
capacity:60-85kgs1000 no holding 1604D 4 1000 holding 1604 CE 4 168*CC19mm,
≤930-1100mm door width,
capacity:60-85kgs1000 no holding 1604D CE 4 1000 holding
FOB Kaohsiung, Taiwan
T/T Payment
MOQ: 1000sets
